Checking and replacing the 1.6 engine idle speed controller
Preparing the car
Remove the throttle body

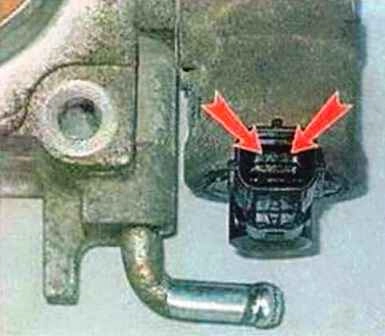

Connect the tester in ohmmeter mode to the terminals of the regulator
Resistance should be 8.8-10.6 ohms
If this is not the case, the regulator must be replaced

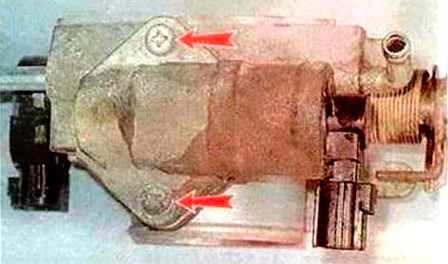

To replace the regulator, as well as to clean it with a Phillips screwdriver, unscrew the two fastening screws and remove the regulator

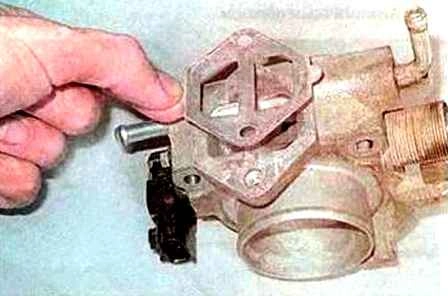

Remove the gasket of the idle speed regulator (during assembly it is necessary to replace it with a new one)

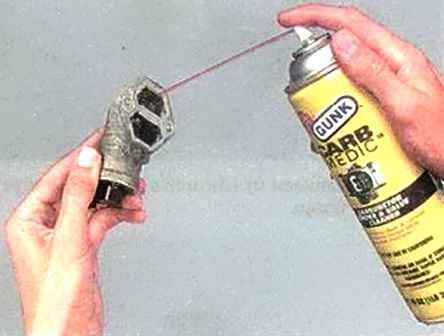

Using a special cleaner, we clean the channels of the regulator
Install parts in reverse order
Checking and replacing the 2.0 engine idle speed controller
Preparing the car for work
Remove the engine trim

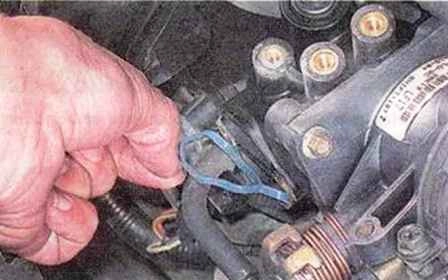

Disconnect the drive cable from the throttle

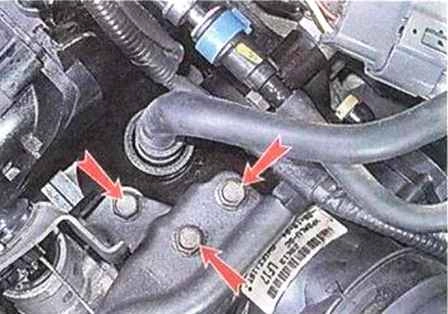

Using an 8 mm wrench, unscrew the three mounting bolts and set aside the throttle cable assembly with the cable

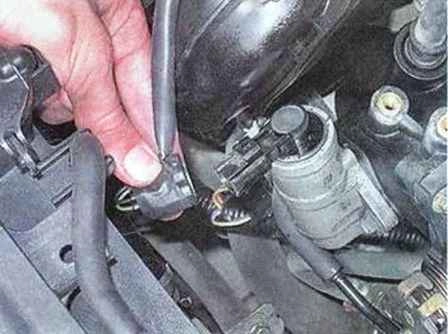

Press the latch and disconnect the wiring harness block from the regulator

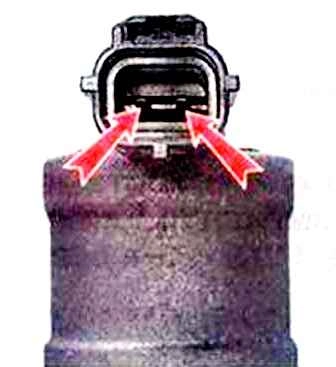

Connect the tester in ohmmeter mode to the terminals of the regulator
Resistance should be 8.8-10.6 ohms
If this is not the case, the regulator must be replaced

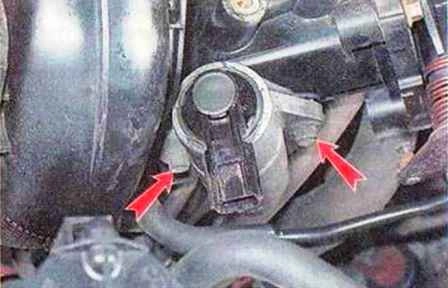

To replace or clean the regulator with an 8 mm wrench, unscrew the two mounting bolts and remove the regulator
Remove the gasket of the idle speed regulator (during assembly it is necessary to replace it with a new one)
Using a special cleaner, we clean the channels of the regulator
Install parts in reverse order
