Remove the front wheel. Using the special tool 09930-00010, remove the front wheel hub nut

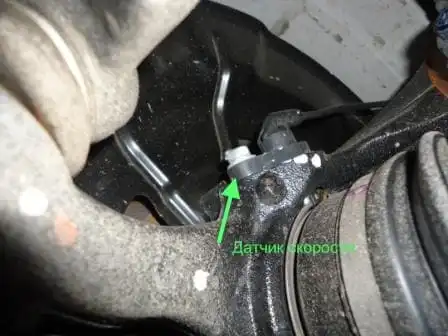

Disconnect the front speed sensor.

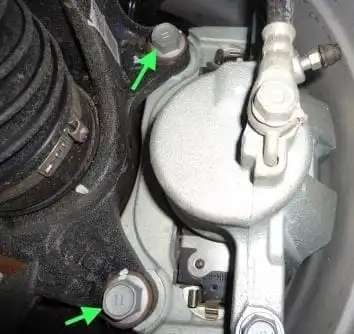

After unscrewing the 2 mounting bolts, disconnect the front disc brake caliper from the steering knuckle (Fig. 1).
Remove the front disc.
Using special tool 09628-62011, disconnect the left tie rod.
Disconnect the front suspension lower control arm.
Using a plastic mallet, separate the front wheel drive assembly from the front wheel hub.
Be careful not to damage the boot and rotor of the ABS speed sensor
Unscrew 2 bolts, nuts and remove the steering knuckle with the front wheel hub (Fig. 2).
Remove the cotter pin and nut.
Using special tool 09628-62011, remove the front suspension lower ball joint (Fig. 3).

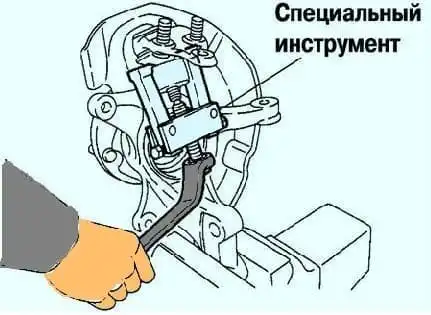

Using a snap ring plier, remove the left drive shaft inner pivot snap ring (fig. 4).

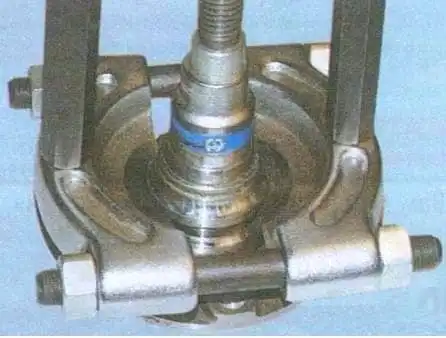

Using the special tool 09520-00031, remove the front wheel hub (fig. 5).

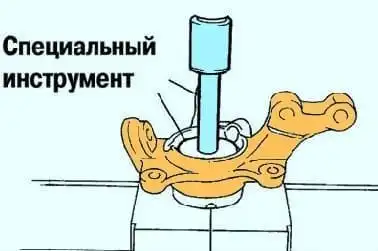

Using special tool 09950-00020 and a press, remove the inner ring (outside) of the front wheel hub (fig. 6).
Using a Torx T30 wrench, remove the 4 bolts and remove the disc brake guard.
Place the inner race (outside) on the front wheel bearing.

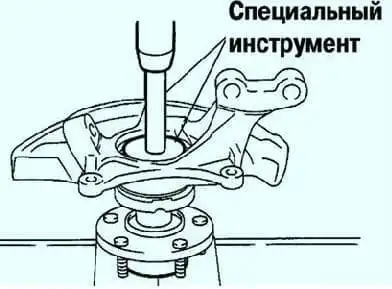

Using the special tool 09527-17011 and a press, press the front wheel bearing until it stops into the special tool (fig. 7).

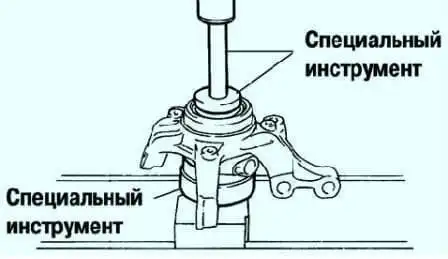

Using a wrench to mount the steering knuckle horizontally, install it on the stand as shown in Figure 8.
Make sure the steering knuckle is horizontal.

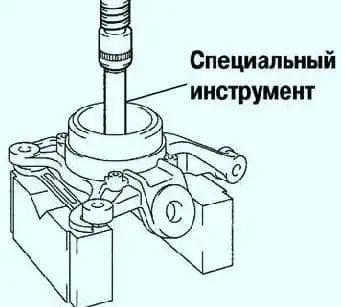

Using special tool 09950-60010 and a press, press out the wheel bearing.
INSTALLATION
Using tool 09950-60020 and a press, install the new front wheel bearing into the steering knuckle.
Install the disc brake guard and using a TorxT30 wrench, tighten the 4 bolts.
Using a special tool and a press, install the front wheel hub (fig. 10)
Using a snap ring installer, install a new front wheel hub hole snap ring.
Install the front suspension lower ball joint and tighten the nut. Tightening torque: 123 Nm.
Install the new cotter pin.
If the cotter pin holes do not line up, turn the nut further up to 60°.
Install the 2 bolts, nuts and front hub assembly to the front suspension shock strut.
Tightening torque: 210 Nm.
Insert the bolt from the front of the vehicle and tighten the nut.
Push the front hub out, align the front wheel drive spline with the hole in the hub, and insert the front wheel drive into the hub.
Do not extend the front hub too far.
Be careful not to damage the outer hinge boot.
Be careful not to damage the ABS speed sensor rotor.
Install the No. 1 front suspension lower arm.
Install the tie rod.
Install the front disc.
Install the disc brake caliper and secure it with two bolts to the steering knuckle. Tightening torque: 106.9 Nm.
Install the front wheel hub nut.
Disconnect the disc brake caliper and check the hub bearing clearance and other checks.
Finally install the disc brake caliper onto the steering knuckle and secure it with 2 bolts.
Install the front speed sensor.
Install the front wheel. Tightening torque: 103 Nm.
Check and adjust the front wheel alignment.
Check ABS speed sensor signal.
