To remove the steering column, remove the steering wheel, article - "How to remove the steering wheel"
Removing paddle shifters, article - "How to remove paddle shifters"

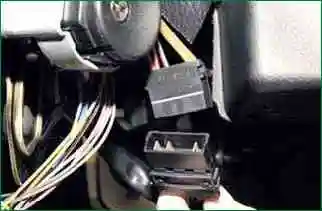

Disconnect the APS coil wiring block from the wiring harness block
Disconnect the wire block of the contact part of the ignition switch

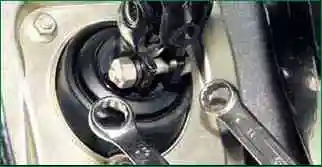

Using a 13 wrench, unscrew the nut of the coupling bolt securing the tip of the lower cardan joint of the intermediate shaft to the shaft of the steering gear screw, holding the bolt from turning with a 13 wrench.
Remove the coupling bolt.
Two bolts of the front mounting of the steering shaft bracket to the body have shear heads.

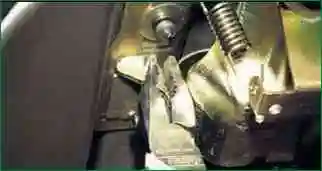

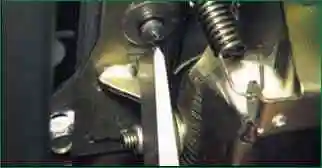

By striking the bolt heads with a chisel, we loosen their tightening
After that, we unscrew the bolts with pliers.

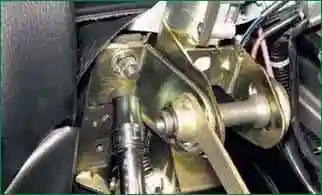

Using a 13 head with an extension, unscrew the two nuts of the rear mounting of the bracket

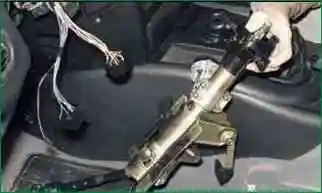

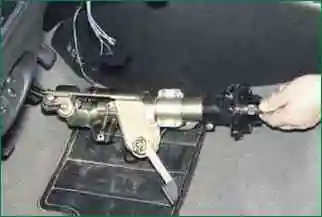

Lowering the steering column.

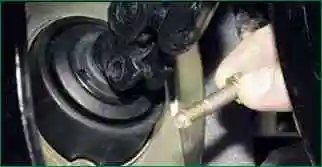

Prying open the split tip of the universal joint with a screwdriver, we pull the shaft off the splines of the steering gear screw shaft.
To remove the intermediate shaft with a head of 13, unscrew the nut of the bolt securing the tip of the universal joint of the intermediate shaft to the upper steering shaft, holding the bolt from turning with a wrench of the same size.
Remove the bolt.

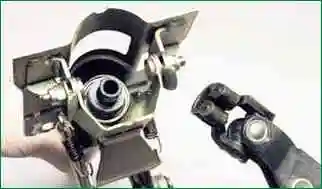

We pull the tip of the cardan joint from the splines of the upper steering shaft
Remove the adjusting ring from the tapered part of the shaft
We assemble and install the steering column in reverse order.
