Removing and installing the throttle assembly of the engine ZMZ-40522, ZMZ-406

Turn off the ignition, disconnect the "negative" terminal of the battery

Removing and installing the throttle assembly of a Gazelle car

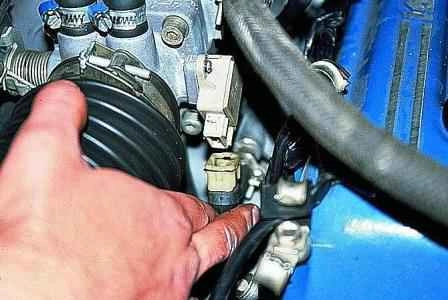

Disconnect the throttle position sensor connector.

Removing and installing the throttle assembly of a Gazelle car

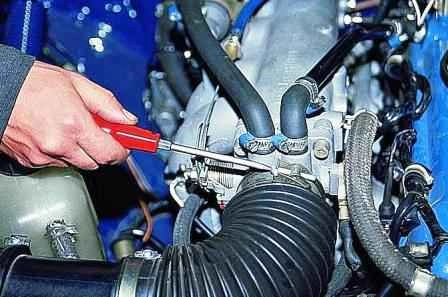

Using a screwdriver, we loosen the clamp of the air supply hose to the throttle body and remove the hose.

Removing and installing the throttle assembly of a Gazelle car

Disconnect the throttle cable.

Drain the coolant (see Replacing the coolant) .

It is not necessary to drain all the coolant, you just need to quickly insert a pre-prepared plug or substitute a container to collect the liquid.

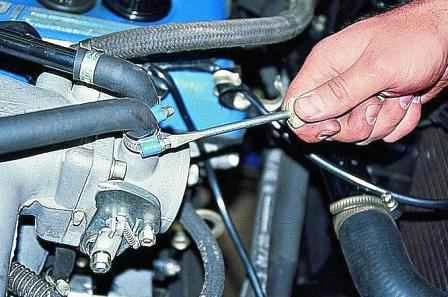

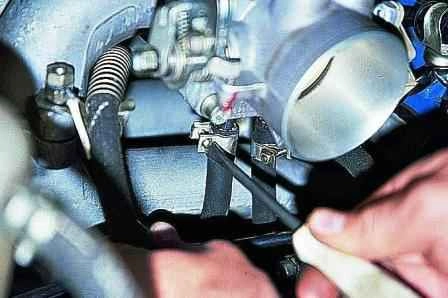

Loosen the clamps of the coolant supply hoses with a screwdriver

Removing and installing the throttle assembly of a Gazelle car

Remove the hoses

Removing and installing the throttle assembly of a Gazelle car

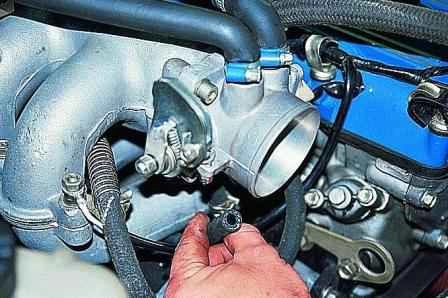

Using a screwdriver, we loosen the hose clamps of the idle speed regulator, crankcase ventilation and remove the hoses from the nozzles of the throttle body

Removing and installing the throttle assembly of a Gazelle car

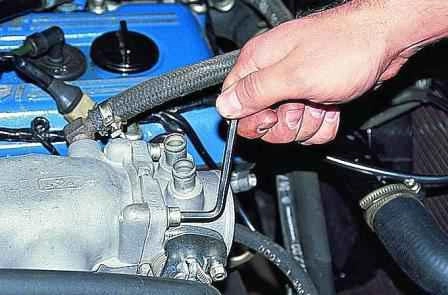

Using a 6 hex wrench, unscrew the four bolts securing the throttle pipe to the receiver

Removing and installing the throttle assembly of a Gazelle car

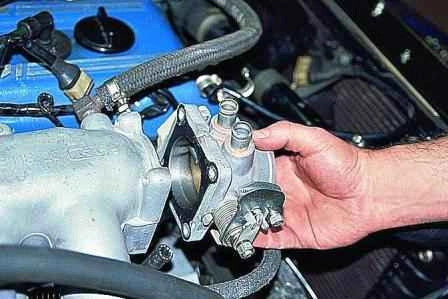

Carefully, so as not to damage the gasket, remove the throttle body

Install the throttle body in reverse order. After installation, you need to adjust the throttle actuator.

Removing and installing the throttle assembly of the ZMZ-40524 engine

Disconnect the minus terminal from the battery

Removing and installing the throttle assembly of a Gazelle car

Press out the latch

Removing and installing the throttle assembly of a Gazelle car

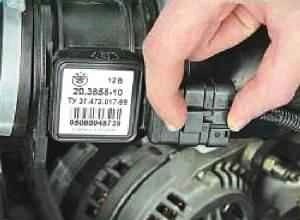

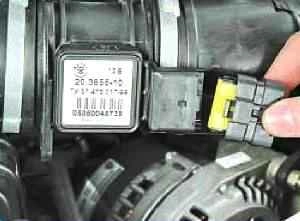

Disconnect the wiring harness block from the mass air flow sensor

Removing and installing the throttle assembly of a Gazelle car

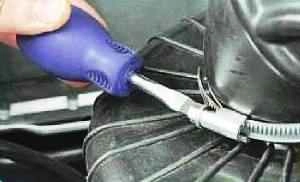

Weaken the clamp and disconnect the air supply hose from the filter cover

Removing and installing the throttle assembly of a Gazelle car

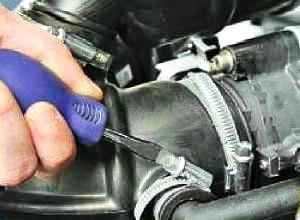

Loosen the clamp and disconnect the hose from the throttle assembly

Removing and installing the throttle assembly of a Gazelle car

Loosen the clamp and disconnect the crankcase ventilation hose from the air supply sleeve

Removing and installing the throttle assembly of a Gazelle car

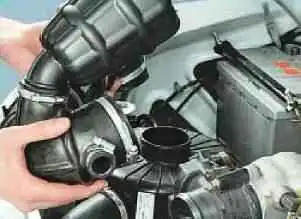

Remove the air inlet sleeve together with the intake silencer and the mass flow sensor

Removing and installing the throttle assembly of a Gazelle car

Squeeze the latch

Removing and installing the throttle assembly of a Gazelle car

Disconnect the wiring harness block from the throttle assembly

Removing and installing the throttle assembly of a Gazelle car

We unscrew the three bolts of the throttle assembly

Removing and installing the throttle assembly of a Gazelle car

Remove the throttle body

Removing and installing the throttle assembly of a Gazelle car

Remove the gasket and be sure to replace it

Install all parts in reverse order
