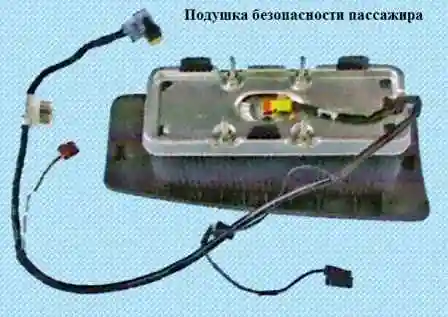

The front passenger airbag is located in the dashboard on the passenger side and consists of a folded airbag shell and an inflator
The passenger airbag module differs from the driver's airbag in shape and large volume
When installing a child seat in the front passenger seat, deactivate the passenger airbag.
To disable the airbag, open the front passenger door and turn the switch to the OFF position.
To remove the pillow, you need tools: a Torx T30 key, a 10 socket socket.
We prepare the car for the task and disconnect the negative battery terminal
Warnings:
Attempting to remove the airbag module without disconnecting power to the airbag module may cause the airbag to deploy unexpectedly.
It is possible to proceed with subsequent operations to remove the airbag only after the activator capacitor is completely discharged.
To do this, you must wait at least 15 minutes after turning off the power supply.
Do not disassemble the airbag module.
Do not drop the airbag module or allow water, grease or oil to come into contact with it.
The airbag module must not be exposed to temperatures above 95°C.

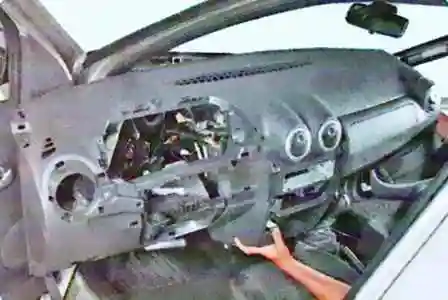

Remove the instrument panel as described in the article - How to remove the instrument panel Lada Largus

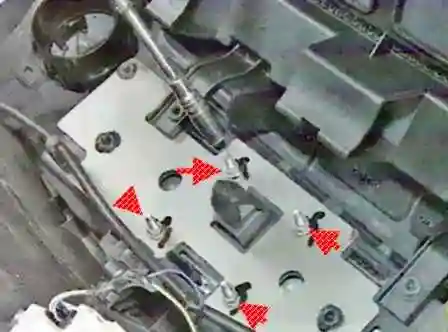

We unscrew the four nuts securing the airbag module to the instrument panel

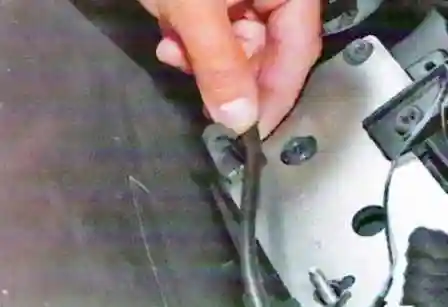

Remove the wiring harness from one holder

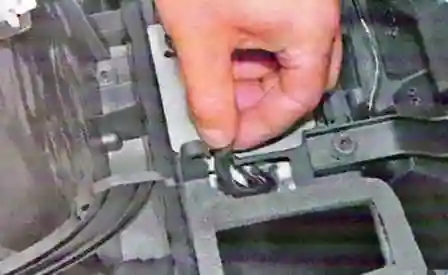

Remove the wiring harness from another holder
Remove the wiring harness from the third holder on the panel

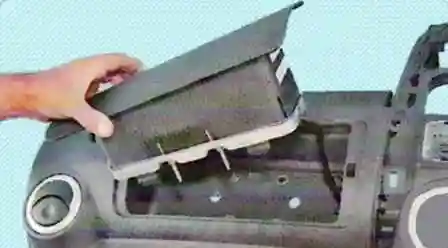

And remove the front passenger airbag module
Install the airbag module in reverse order

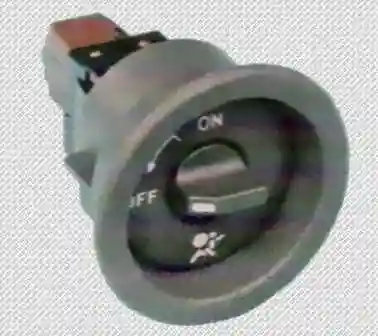

Removing and installing passenger airbag switch
Disconnect the negative battery terminal
Opening the front passenger door
Turn the switch housing clockwise

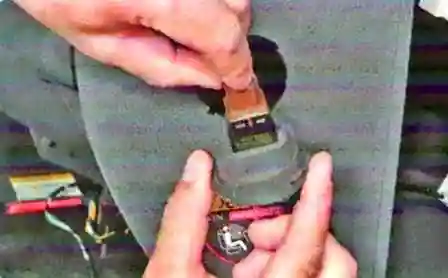

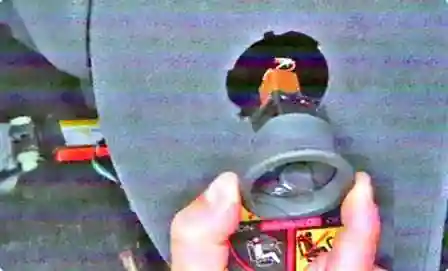

Remove the switch from the hole in the instrument panel
Squeeze the wire block retainer

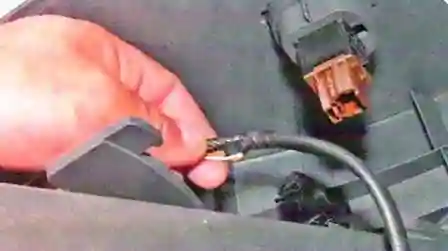

And disconnect the block from the switch. Removing the switch
Install the front passenger airbag switch in reverse order.
