How carburetors work

The carburetor is used to create a fuel-air emulsion, depending on the conditions and specified operating modes of the engine cylinders

We will consider the operation of carburetors using the example of a VAZ-21083 carburetor.

Main dosing system

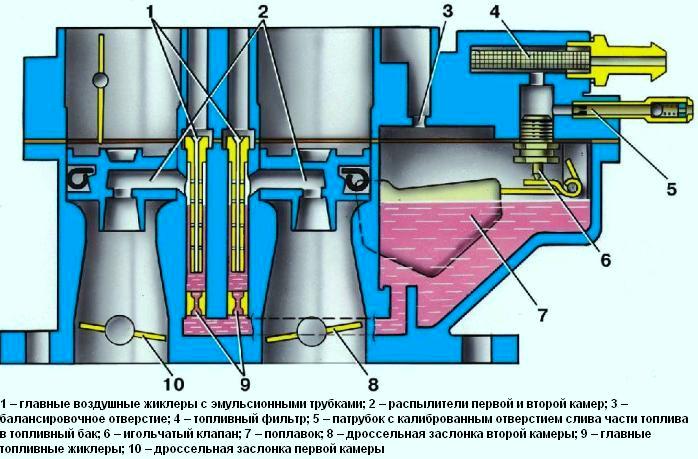

Fig. 1. Scheme of the main dosing systems: 1 - main air jets with emulsion tubes; 2 - sprayers of the first and second chambers; 3 - balancing hole; 4 - fuel filter; 5 - branch pipe with a calibrated hole for draining part of the fuel into the fuel tank; 6 - needle valve; 7 - float; 8 - throttle valve of the second chamber; 9 - main fuel jets; 10 - throttle valve of the first chamber

Fuel is fed through the strainer 4 (Fig. 1) and the needle valve 6 into the float chamber.

From the float chamber, the fuel enters through the main fuel jets 9 into the emulsion wells and mixes with the air leaving the holes of the emulsion tubes 1, which are made integral with the main air jets.

Through sprayers 2, the fuel-air emulsion enters the small and large diffusers of the carburetor.

Throttle valves 8 and 10 are interconnected in such a way that the second chamber starts to open when the first one is already open by 2/3 of the amount.

Idling system

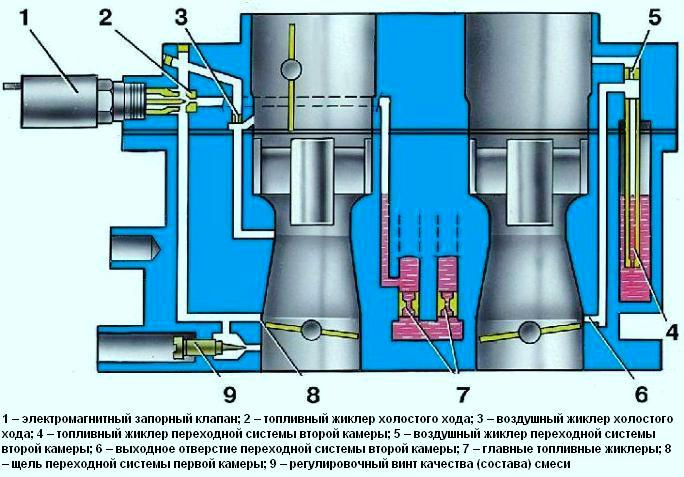

Fig. 2. Scheme of the idle system and transitional systems: 1 - electromagnetic shut-off valve; 2 - idle fuel jet; 3 - idle air jet; 4 - fuel jet of the transition system of the second chamber; 5 - air jet of the transition system of the second chamber; 6 - outlet of the transition system of the second chamber; 7 - main fuel jets; 8 - slot of the transition system of the first chamber; 9 - adjustment screw for the quality (composition) of the mixture

Takes fuel from the emulsion well after the main fuel jet 7 (Fig. 2).

Fuel is supplied to the fuel jet 2 with an electromagnetic shut-off valve 1, at the outlet of the jet it mixes with air coming from the flow channel and from the expanding part of the diffuser (to ensure the normal operation of the carburetor when switching to idle mode).

The emulsion exits under the throttle valve through a hole regulated by screw 9 for the content of carbon monoxide (CO) in the exhaust gases.

Transition systems

When the carburetor throttles are opened before the main metering systems are turned on, the air-fuel mixture flows:

  • - into the first mixing chamber through the idle jet 2 and the vertical slot 8 of the transition system, located at the level of the throttle valve edge in the closed position;
  • - into the second mixing chamber through the outlet 6, located just above the edge of the throttle valve in the closed position.

Fuel comes from jet 4 through a tube, mixes with air from jet 5 coming through the flow channel.

Power modes economizer

Fig. Fig. 3. Scheme of the econostat and economizer of power modes: 1 - throttle valve of the second chamber; 2 - main fuel jet of the second chamber; 3 - econostat fuel jet with a tube; 4 - main fuel jet of the first chamber; 5 - throttle valve of the first chamber; 6 vacuum transmission channel; 7 - economizer diaphragm; 8 - ball valve; 9 - economizer fuel jet; 10 - fuel channel; 11 - air damper; 12 - main air jets; 13 - econostat injection tube

It works at a certain vacuum behind the throttle valve 5 (Fig. 3).

Fuel is taken from the float chamber through ball valve 8.

The valve is closed as long as the diaphragm is held by vacuum in the intake pipe.

With a significant opening of the throttle valve, the vacuum drops somewhat and the diaphragm spring 7 opens the valve.

The fuel passing through the economizer jet 9 is added to the fuel that passes through the main fuel jet 4, enriching the combustible mixture.


Operates at full engine load at speeds close to maximum, with wide open throttles.

Fuel from the float chamber through the jet 3 enters the fuel tube and is sucked out through the injection tube 13 into the second mixing chamber, enriching the fuel with month.

Accelerator pump

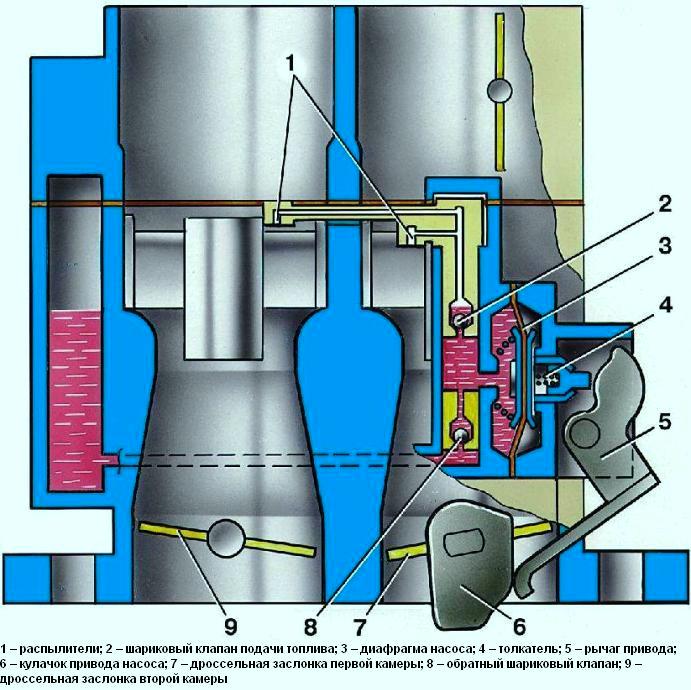

Fig. 4. Diagram of the accelerator pump:

1 - atomizers; 2 - ball fuel supply valve; 3 - pump diaphragm; 4 - pusher; 5 - drive lever; 6 - pump drive cam; 7 - throttle valve of the first chamber; 8 - check ball valve; 9 - throttle valve of the second chamber

Diaphragm, mechanically driven by cam 6 (Fig. 4) on the axis of the throttle valve of the first chamber.

When the throttle is closed, the spring pulls the diaphragm 3 back, which leads to filling the pump cavity with fuel through the ball valve 8.

When the throttle is opened, the cam acts on lever 5, and diaphragm 3 pumps fuel through ball valve 2 and nozzles 1 into the mixing chambers of the carburetor, enriching the combustible mixture.

The performance of the pump is not adjustable and depends only on the profile of the cam.

Semi-automatic launcher

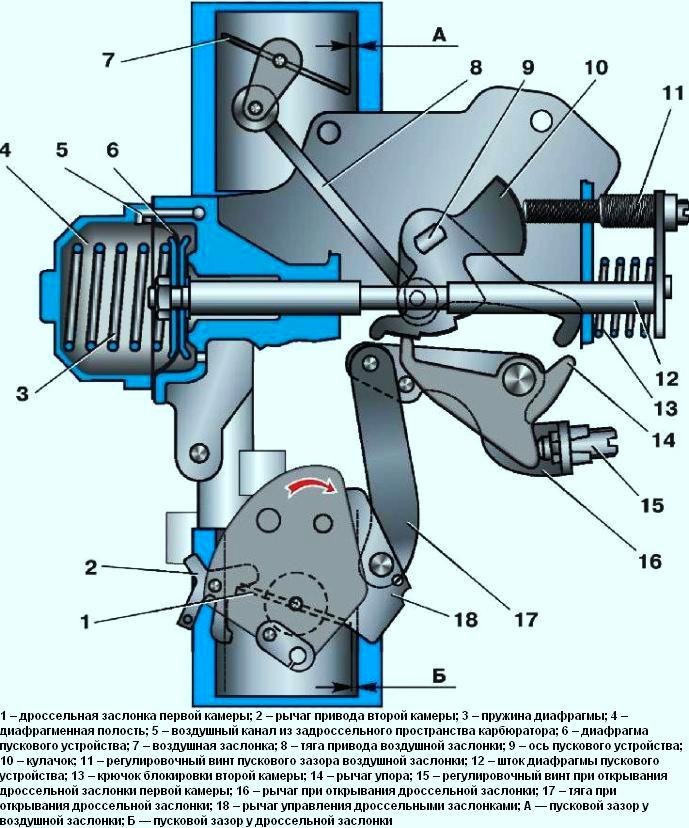

Fig. 5. Scheme of a semi-automatic starting device for carburetor 21083-1107010-31:

1 - throttle valve of the first chamber; 2 - drive lever of the second chamber; 3 - diaphragm spring; 4 - diaphragmatic cavity; 5 - air channel due to the throttle space of the carburetor; 6 - diaphragm of the starting device; 7 - air damper; 8 - air damper drive rod; 9 - axis of the starting device; 10 - cam; 11 - adjusting screw of the starting gap of the air damper; 12 - diaphragm rod of the starting device; 13 - hook for blocking the second chamber; 14 - stop lever; 15 - adjusting screw when opening the throttle valve of the first chamber; 16 - lever when opening the throttle; 17 - thrust when opening the throttle; 18 - throttle control lever; A - starting gap at the air damper; B - starting clearance at the throttle

Improves vehicle control and reduces exhaust gas toxicity during engine start and warm-up (Fig. 5).

When starting a cold engine, the bimetallic spring of the starting device (not shown in Fig. 5) with the help of levers and rod 8 keeps the air damper 7 closed.

After starting the engine, the damper with the help of diaphragm 6 opens slightly to clearance A, which is adjusted by screw 11 of the stem 12 of diaphragm 6 of the starting device.

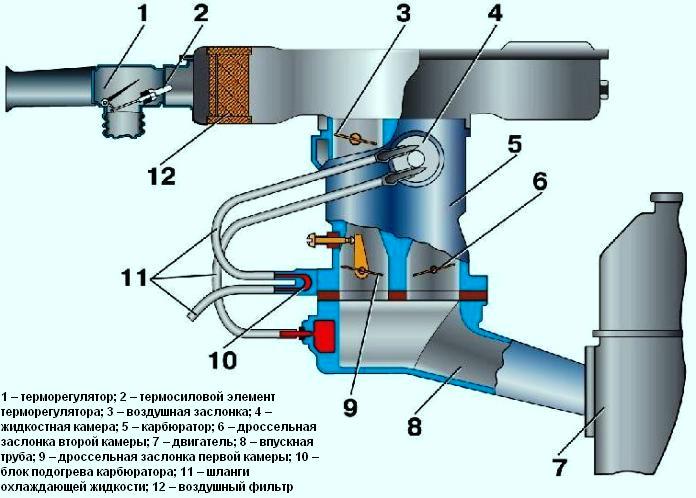

Fig. 6. Hose connection diagram for semi-automatic carburetor starter 21083–1107010-31:

1 - thermostat; 2 - thermal power element of the thermostat; 3 - air damper; 4 - liquid chamber; 5 - carburetor; 6 - throttle valve of the second chamber; 7 - engine; 8 - inlet pipe; 9 - throttle valve of the first chamber; 10 - carburetor heating block; 11 - coolant hoses; 12 - air filter

As the engine warms up with the coolant circulating through the liquid chamber 4 (Fig. 6) of the starting device, the bimetallic spring also heats up, which ensures the opening of the air damper through the levers of the starter drive and thrust 8 (see Fig. 5).

When the engine is warm, the air damper is fully open with a bimetallic spring.

Forced idle economizer

Disables the idle system during forced idle (during engine braking, downhill driving, gear shifting), reducing fuel consumption and hydrocarbon emissions.

In the forced idle mode, at a crankshaft speed of more than 2100 min -1 and with the carburetor limit switch closed to ground (pedal released), the shut-off solenoid valve turns off, the fuel supply is interrupted. p>

When the speed of the crankshaft at forced idle speed drops to 1900 min-1, the control unit turns on the electromagnetic shut-off valve (although the limit switch is turned on to ground), fuel begins to flow through the idle jet , the engine gradually idles.
