Before buying a bearing, you need to look at its catalog number

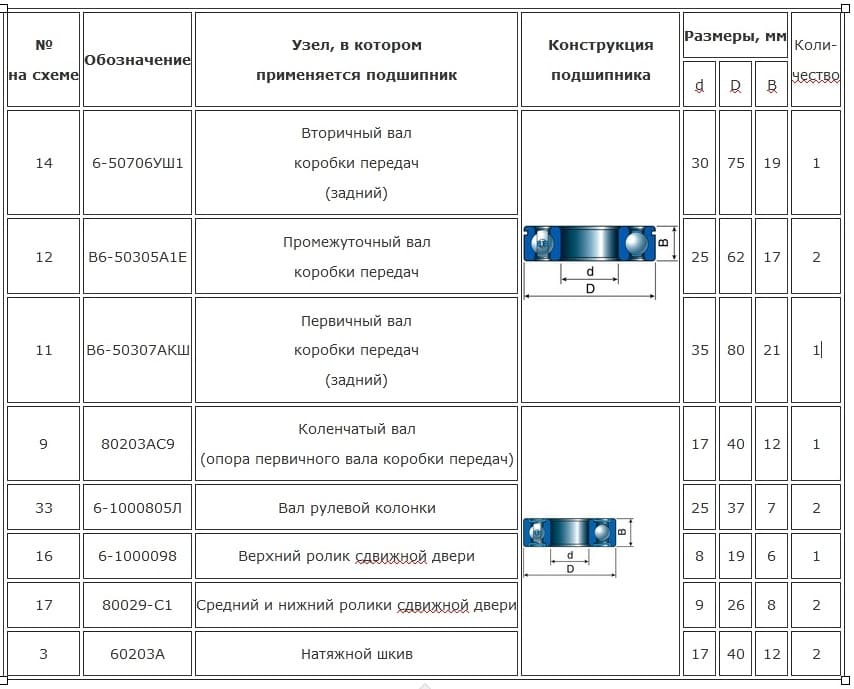

The table shows the bearing numbers according to the spare parts catalog and the numbers according to the diagram

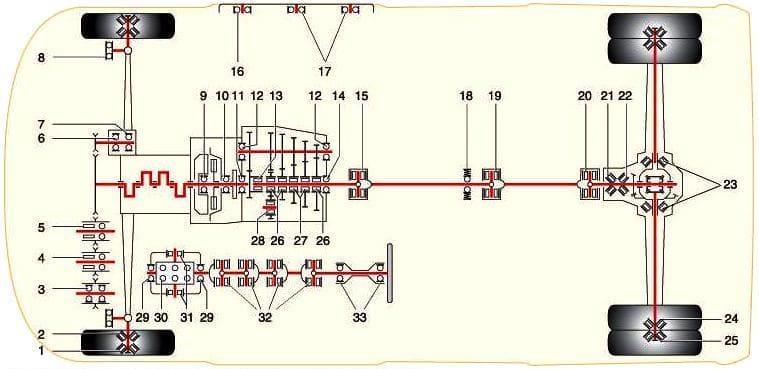

According to the scheme, we look at the location of the bearing and look at the correspondence number in the table.
We also look at which bearing is according to the sketch and the dimensions of the bearing.

Tables of rolling bearings
Rollers (needles)
Balloons
# on the diagram |
Designation |
The node where the ball is applied |
Diameter d, mm |
Koli- value |
---|---|---|---|---|
30 |
469115526 |
Steering screw |
7,144 |
70 |
– |
3.175-60Yu |
K-151 carburetor |
3,175 |
1 |
– |
B6.35-60 |
Gearbox output |
6.35 |
1 |
– |
B7.938-70 |
Shift mechanism |
7,398 |
4 |
– |
B11.906-60 |
Oil cooler valve |
11,906 |
1
|
