We carry out the instrument cluster when replacing or repairing the instrument cluster, as well as when removing the instrument panel
Disconnect the negative battery terminal.

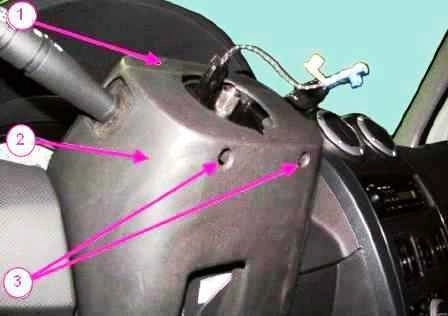

Remove the upper casing of the steering column, for this we unscrew the two screws 3, fastening the casings of the steering column and, having overcome the force of the clamps, remove the upper casing 1.

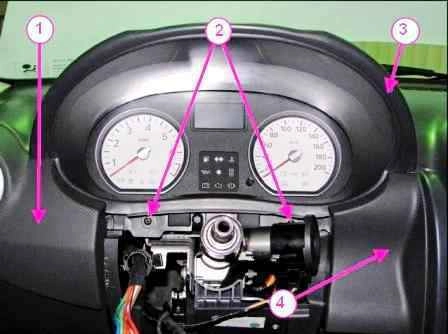

Having overcome the force of the clamps, remove the decorative trims 1 and 4 (Figure 2).
We unscrew the two screws 2 fastening the visor of the instrument cluster and remove the visor 3, overcoming the force of the clamps.

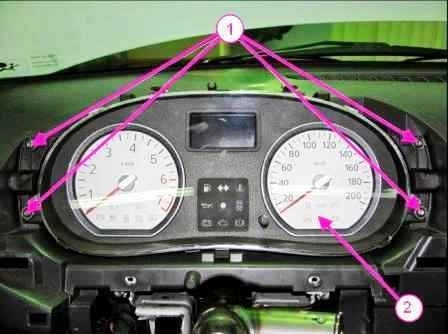

Unscrew the four screws 1, figure 3, fastening the instrument cluster, and remove the instrument cluster from the instrument panel

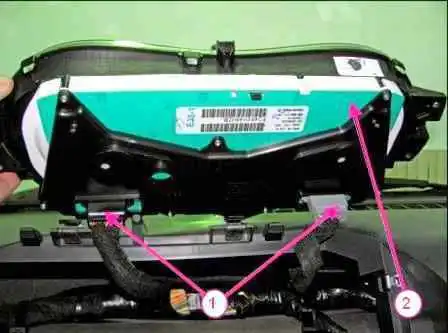

Disconnect the two pads 1, Figure 4, of the instrument panel wiring harness from the 2 instrument cluster.
Install the instrument cluster in reverse order.
More about removing the instrument cluster
Tools required: TorxT20 wrench, plastic spudger, screwdriver
Disconnect the negative battery terminal

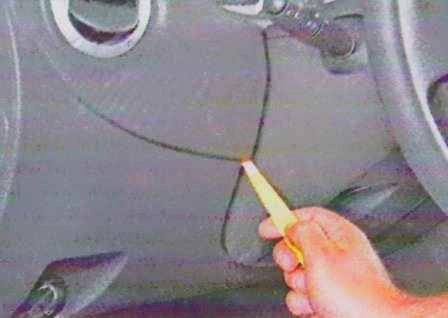

We pry off the trim on the left side of the instrument panel with a mounting spatula
Overcoming the resistance of the holders, remove the overlay

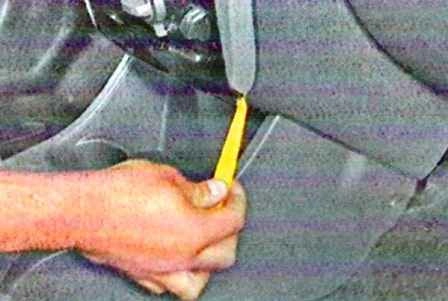

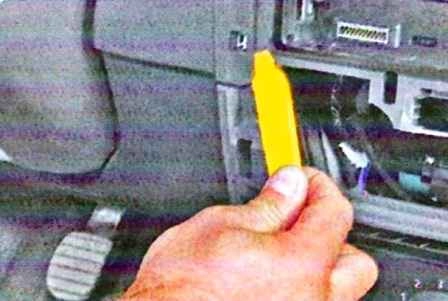

We pry off the lower edge of the instrument panel lining with a mounting spatula or screwdriver

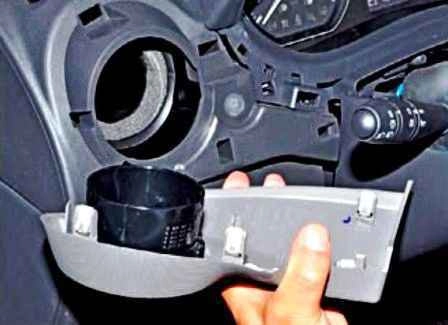

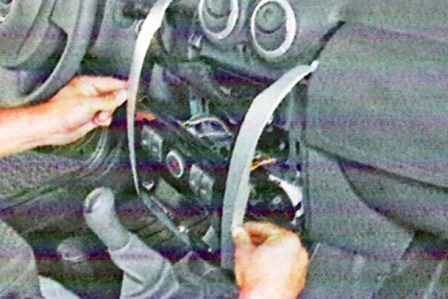

Disconnect the lining from the instrument panel, overcoming the resistance of the clamps
We remove the upper edge of the lining from engagement with the instrument panel and take it away from the panel to the right by the length of the attached wires

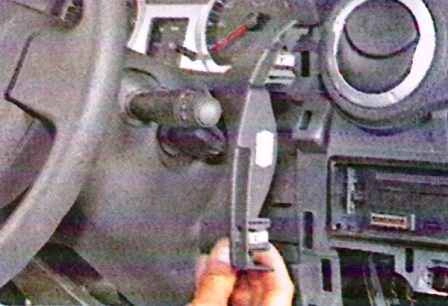

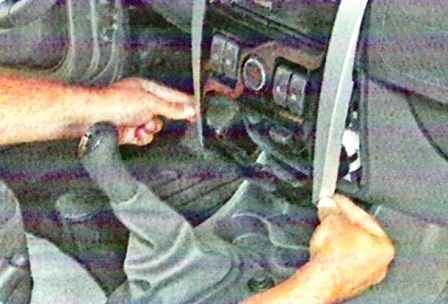

We pry off the top trim of the center console with a mounting spatula and remove the trim

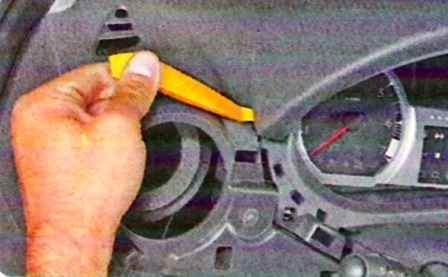

We pry off the upper trim of the instrument cluster with a mounting spatula and, overcoming the force of the holders, remove the trim

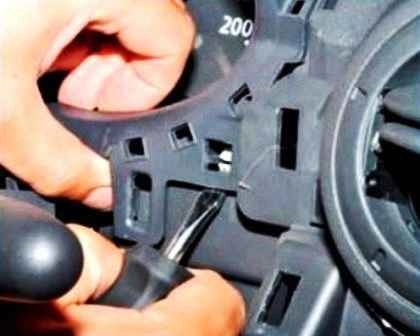

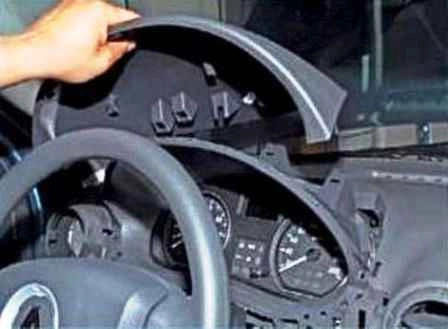

We pry off the edges of the upper lining of the instrument cluster, and disconnect its latches from the instrument panel
Remove the upper part of the steering column cover

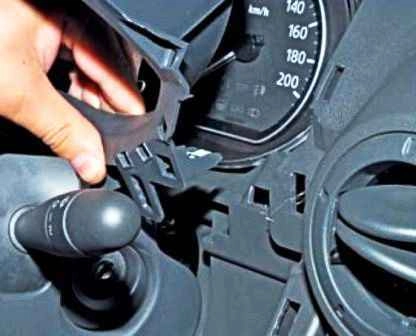

We unscrew the two screws securing the inner lining of the instrument cluster, and remove the lining

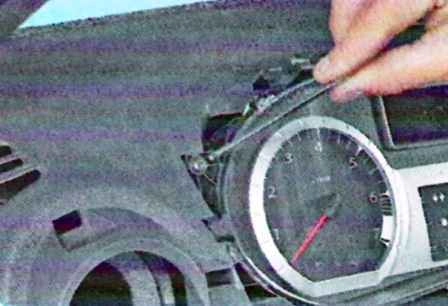

We unscrew two screws securing the instrument cluster on its right and left sides

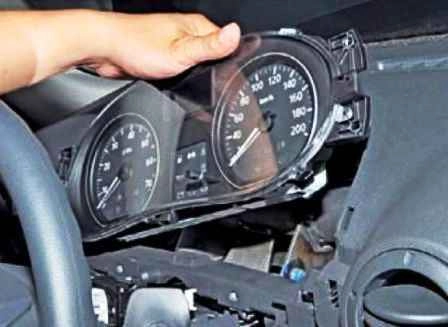

We remove the instrument cluster from the socket in the instrument panel to the length of the connected wires

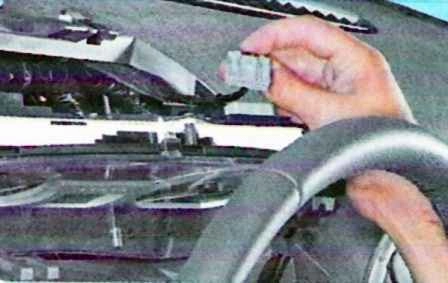

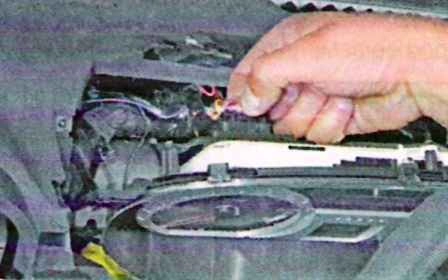

Tilt the instrument cluster, disconnect the left and right wire blocks by pressing their latches, and remove the instrument cluster
Install all parts in reverse order
