We remove the oil separator to clean it from deposits, as well as when dismantling the cylinder head cover
Flushing and cleaning the crankcase ventilation system must be done, otherwise, if the system is clogged, the backpressure in the crankcase will drive oil through the engine seals.
For work, we need a screwdriver, torque wrench, sealant, knife.
Remove the receiver.
For clarity, the operation is shown on the removed engine.

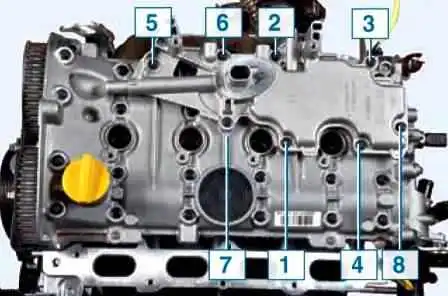

With a head of 8, we unscrew the eight bolts (Fig. 1) securing the oil separator to the cylinder head cover

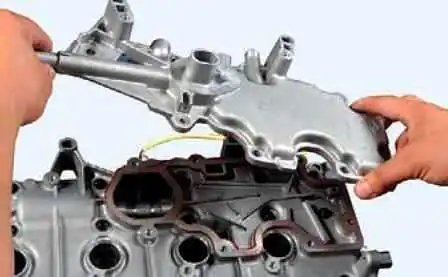

Remove the oil separator (Fig. 2).
Before installing the oil separator, we clean and wash its cavities and channels from deposits with gasoline.
We remove the remnants of the old sealant from the mating surfaces of the oil separator and the cylinder head cover and degrease the surfaces.
Surfaces must be clean, dry and free of fingerprints.

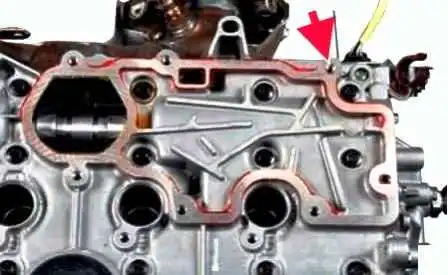

We apply a special, high-temperature sealant (Fig. 3) for flange connections to the mating surface of the oil separator until the surface becomes reddish.
We install the oil separator and tighten the bolts of its fastening in the indicated sequence to the prescribed torque.
Sequence of tightening the oil separator mounting bolts (Fig. 4).
We tighten the bolts with a tightening torque of 13 - 15 Nm.
Further assembly is carried out in the reverse order.
